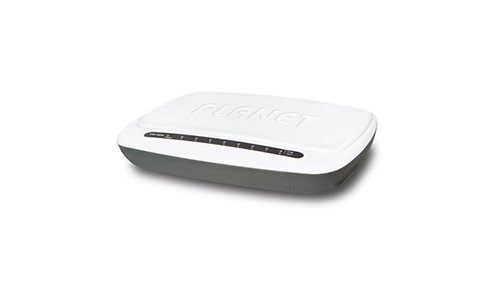

Planet Switch SW-804 8-Port 10/100Mbps Desktop Fast Ethernet Switch
$16.2
$24.79
**Planet Switch SW-804: A Cost-Effective Fast Ethernet Switch for Small Networks** The Planet Switch SW-804 is a high-speed 10/100 Mbps workgroup switch designed for businesses and home users. It provides an integrated solution for small-office and home-office networking, making it a cost-effective choice for those looking to enhance their network infrastructure. **Compact and Reliable Performance** With its compact plastic case design, the SW-804 is ideal for networks with 10 to 50 users. It supports Store-and-Forward forwarding, ensuring low latency and high data integrity. The switch’s high performance throughput, including filtering and forwarding rates of 14,880 packets per second at 10 Mbps and 148,800 packets per second at 100 Mbps, helps to boost bandwidth and eliminate unnecessary traffic. The SW-804 also features a 448K bit packet buffer, which helps to relieve congestion on critical server paths. Its intelligent address recognition algorithm can recognize up to 1,000 different MAC addresses, providing a switching capacity of 1.6 Gbps. This ensures that the switch can transfer packets at wire speed without risk of packet loss. **Easy to Install and Use** The SW-804’s fancy-shaped plastic design fits into space-limited environments. It is designed with the concepts of “Easy to Install and Use,””Compact Sized Design,”and”Simple Troubleshooting” in mind. This makes it a cost-conscious choice for businesses and home users who want a reliable and user-friendly switch for their network. **Key Features** * RJ-45 interface with eight 10/100 Mbps Fast Ethernet ports * Complies with IEEE 802.3, 10Base-T, and IEEE 802.3u 100Base-TX standards * Supports auto MDI/MDI-X function * Switching hardware-based 10/100 Mbps, half / full duplex, flow control, and auto-negotiation * Supports Store-and-Forward mode with wire-speed filtering and forwarding rates * Integrated address look-up engine supports 1,000 absolute MAC addresses * Handles up to 1,536 bytes packet * Automatic address learning and address aging * Supports CSMA/CD protocol **Specifications** * Hardware Version 3 * 10/100Base-TX ports * 8 auto MDI/MDXI ports * LED Display: One for Power, One for Link / Act per port * Enclosure: Plastic * Dimensions (W x D x H): 168 x 100 x 29 mm * Weight: 152 grams * Power Requirements: 5V DC, 1A * Power Consumption: 2.5 watts / 8.5 BTU **Switch Specifications** * Switch Processing Scheme: Store-and-Forward * Address Table: 1K * Share Data Buffer: 448k * Flow Control: Back pressure half duplex, IEEE 802.3x pause frame full duplex * Switch Fabric: 1.6Gbps * Throughput (packet per second): 1.19Mpps * Maximum Packet Size: 1536 bytes * Standards Conformance: IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3x (Full-duplex Flow Control). * Regulation Compliance: FCC Part 15 Class B, CE * Environments: * Temperature: Operating: 0~50 degrees C, Storage: -10~70 degrees C * Humidity: Operating: 5% to 95%, Storage: 5% to 95% (non-condensing)
