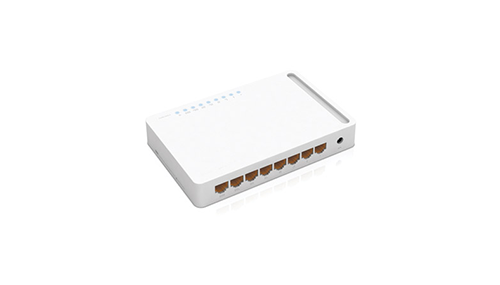

**8-Port Gigabit Desktop Switch** This switch features 8 RJ45 ports that automatically negotiate the data transfer speed, allowing for compatibility with various network devices. It supports auto MDI/MDIX, making it easy to connect to different types of network cables. The switch complies with the following standards: * IEEE 802.3 * IEEE 802.3u * IEEE 802.3ab * IEEE 802.3x Key features include: * 8 auto-negotiation ports for 10/100/1000 Mbps * Flow control for each port * Store and forward switching scheme * NWay auto-negotiation for all ports * Auto MDI/MDIX for each port * Per-port bandwidth control * PHY register read/write access **Hardware Features** The switch supports the following standards: * IEEE 802.3 * IEEE 802.3u * IEEE 802.3ab * IEEE 802.3x It has 8 RJ-45 ports for 10/100/1000 Mbps auto-negotiation (Auto MDI/MDIX). The power supply is 9V DC/0.8A. The dimensions are 163mm x 106mm x 25mm. The LED indicators show power and link/activity status. MAC address learning is automatic, with auto update capabilities. The MAC address table has 8K entries. **Network Media Support** The switch is compatible with the following network media: * 10Base-T: UTP Cat 3, 4, 5 cable (max. 100m) * EIA/TIA-568 100Ω STP (max. 100m) * 100Base-Tx: UTP Cat 5, 5e cable (max. 100m) * EIA/TIA-568 100Ω STP (max. 100m) * 1000Base-T: UTP Cat 5, 5e cable (max. 100m) **Frame Filtering** The switch filters frames at the following speeds: * 10Mbps: 14,880 frames per second (pps) * 100Mbps: 148,800 pps * 1000Mbps: 1,488,000 pps **Backup Bandwidth** The maximum backup bandwidth is 16Gbps. **Transmission Method** The switch uses a store-and-forward method for data transmission. **Environment** The operating temperature range is 0-40 Celsius, and the storage temperature range is -40-70 Celsius.
