HIKVISION DS-3E0520HP-E 16 Port Gigabit Unmanaged POE Switch

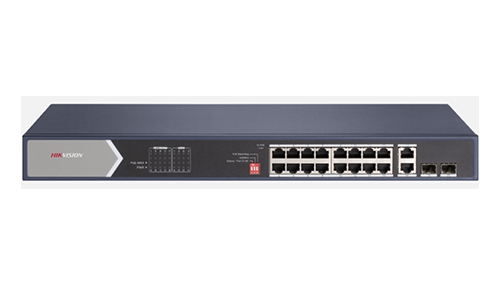

**HIKVISION DS-3E0520HP-E** This is a 16-port gigabit unmanaged PoE switch. It supports 20 ports for PoE network connections, including: – 16 x 10/100 / 1000 Mbps Ethernet ports for data transmission; – 2 x 10/100 / 1000 Mbps uplink Ethernet ports for connecting to other network devices; – 2 x 10/100 / 1000 Mbps SFP optical ports for fiber optic connections. The switch also features Hi-PoE support, allowing it to deliver up to 90W of power per port (ports 1 to 4). Additionally, it supports PoE with IEEE 802.3af / at standard, providing up to 30W per port (ports 5 to 16). The total PoE budget is 225W. The Ethernet signal transmission distance can reach up to 100 meters, while in the “Extended” mode, it can operate at distances up to 300 meters (10Mbps / Cat5e). The PoE watchdog function helps to automatically detect and restart cameras that do not respond. The switch offers port isolation mode for improved network security, allowing you to control which ports are connected to each other. It also has a switching capacity of 40Gbps and built-in lightning protection of 6kV. The dimensions of the switch are 440x221x44 mm. Overall, this switch is a reliable and feature-rich solution for your network needs.
