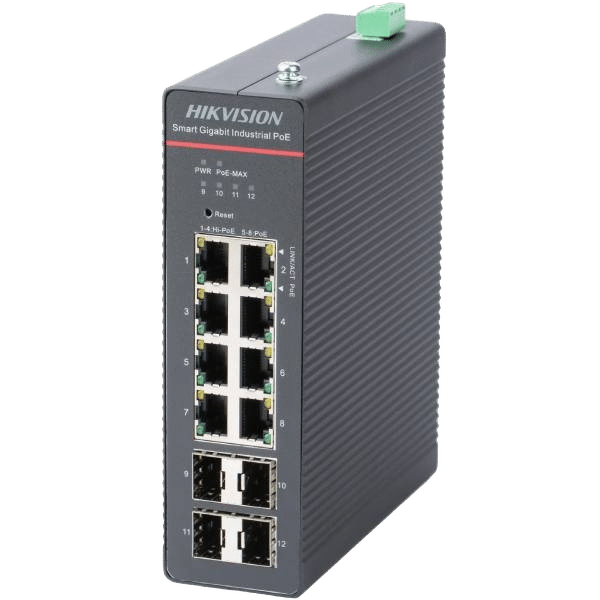

Hikvision DS-3T1512HP-SI-8P4F 8-Port Gigabit Hi-PoE Smart Managed Switch – 130W Budget, 2×60W 802.3bt Ports, 300m Extend, 4 SFP Uplinks, VLAN/QoS, Hik-Partner Pro Cloud (No Power Adapter)

The Hikvision DS-3T1512HP-SI-8P4F is the ultimate high-power compact smart switch for professional installers. Ports 1 & 2 deliver full 60 W IEEE 802.3bt Hi-PoE each (total 120 W on these two ports alone) – perfect for powering the most demanding PTZ speed domes, large heated ColorVu cameras, or external illuminators without any injector. Ports 3–8 provide standard PoE (30 W each) for a total 130 W PoE budget. Full Gigabit performance across all 8 RJ45 ports plus 4× 1000 Mbps SFP fiber uplinks for backbone or multi-switch daisy-chaining. Activate 300 m extend mode on all PoE ports for distant outdoor installations. Manage everything remotely via web GUI or Hik-Partner Pro cloud – VLANs, QoS, loop prevention, PoE watchdog, real-time monitoring, and one-click camera reboot. Rugged metal housing, fanless silent operation, and 6 kV surge protection ensure 24/7 reliability. Sold without external power adapter – ideal for installers using centralized 48–57 VDC rack power supplies or UPS systems. Attribute Name Attribute Value Model DS-3T1512HP-SI-8P4F Ports 8 × 10/100/1000 Mbps PoE ports 4 × 1000 Mbps SFP slots PoE Standard IEEE 802.3af/at/bt (Ports 1–2: max 60 W Hi-PoE each; Ports 3–8: max 30 W) PoE Power Budget 130 W total Management Web GUI Hik-Partner Pro cloud management Key Smart Features VLAN, QoS, Loop prevention, Port isolation, PoE watchdog, Remote reboot Long-Range Extend Mode Up to 300 m @ 10 Mbps (all 8 PoE ports) Switching Capacity 24 Gbps Packet Forwarding Rate 17.856 Mpps Surge Protection 6 kV Power Input 48–57 VDC (terminal block – external power supply NOT included) Max Power Consumption ≤ 140 W (full PoE load) Operating Temperature -10 °C to 55 °C Housing Metal, fanless, desktop/wall-mount Dimensions (W×D×H) 270 mm × 180 mm × 44 mm (10.63″ × 7.09″ × 1.73″) Net Weight Approx. 1.35 kg (2.98 lb) Certification CE, FCC, RoHS
