Dahua PFS3218‐16ET‐135 16 port Switch 100 Mbps

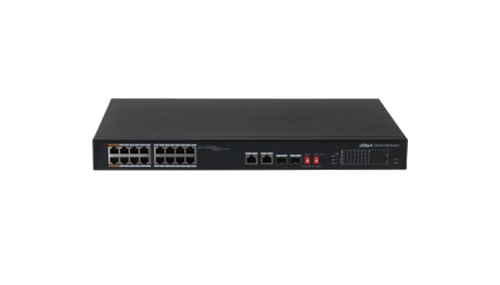

**Dahua PFS3218-16ET-135 16-Port Switch 100 Mbps** The Dahua PFS3218-16ET-135 is a 100 Mbps unmanaged PoE switch with two dual-port uplink ports. It supports a functional DIP switch that provides features such as port isolation, long-distance power supply, PoE watchdog, and QoS control. The switch features Gigabit uplink optical ports, making it suitable for long-distance transmission. **Key Features:** – Intelligent PoE – PD Alive (PoE Watchdog) – Long-Distance PoE Transmission – Smooth Transmission – Wide Working Temperature: –10 to 55°C (14°F to 131°F) – Port Isolation **Performance:** Layer 2 Managed No Switching Capacity 7.2 Gbps Packet Forwarding Rate 5.3568 Mpps Packet Buffer Memory 4 Mbit MAC Table Size **Standards Compliance:** IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z **Hardware Features:** **Standard Power Supply:** Yes **PoE:** Yes **Ethernet Port:** 16 **Optical Port:** 2 **Ethernet Port Rate:** 100 Mbps **Optical Port Rate:** 1 Gbps **Number of Business Card Slots:** “Port 1–16: 16 × RJ45 10/100 MbpsPort 17–18: 2 × RJ45 10/100/1000 Mbps (uplink)Port 17–18: 2 × SFP 1000 Mbps (uplink) (combo)” **Power Supply:** 100V AC–240V AC **Operating Temperature:** –10°C to 55°C (14°F to 131°F) **Operating Humidity:** 10%–90% **Storage Humidity:** 5%–95% **Power Consumption:** “Idling: 5WFull load: 135W” **PoE:** **PoE Standard:** IEEE802.3af, IEEE802.3at, Hi-PoE **PoE Budget:** Port 1–2≤60W, Port 3–16≤30W, total≤135W **PoE Pin Assignment:** PoE/Hi-PoE: 1, 2, 4, 5 (V ), 3, 6, 7, 8 (V-) **Long Distance PoE Transmission:** Yes **Function:** **VLAN:** Yes **QoS:** Yes **System Maintenance:** Yes **PD Alive:** Yes **General ESD:** Air discharge: 8kV Contact discharge: 6kV Thunderproof: Common mode: 4kV Differential mode: 2kV **Dimensions:** 440 mm × 300 mm × 44 mm (17.32″× 11.81″ × 1.73″) **Packaging Dimensions:** 527 mm × 412 mm × 110 mm (20.75″ × 16.22″× 4.33″)
