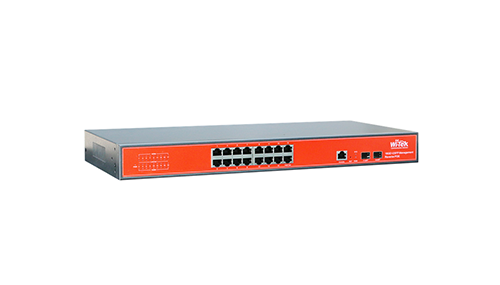

WI-TEK WI-PMS318GF 16xGigabit, 16xPassive PoE 24V, 2xSFP, Managed, RackMount, 350W

**WI-TEK WI-PMS318GF 16xGigabit, 16xPassive PoE 24V, 2xSFP, Managed, RackMount, 350W** This 16-port managed switch provides high performance for your network. It offers enterprise-level QoS, advanced security strategies, and rich layer 2 management features. Additionally, it has two gigabit SFP slots for flexible network expansion. The switch also has robust security and management features, including IP-MAC-Port-VID Binding and Access Control List (ACL) functions. These features protect against broadcast storms, ARP attacks, and denial-of-service (DoS) attacks. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. With easy-to-use web management interfaces, along with CLI, SNMP, setup and configuration are faster, with less downtime. Secure Networking WI-TEK’s WI-PMS318GF-24V provides IP-MAC-Port-VID Binding, Port Security, Storm control, and DHCP Snooping. These features protect against broadcast storms, ARP attacks, and other typical DoS attacks. Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, and even VLAN ID. Advanced QoS features The switch applies rich QoS policies to integrate voice, data, and video services on one network. Administrator can designate the priority of traffic based on various means, including IP or MAC address, TCP or UDP port number, ensuring that voice and video remain clear, smooth, and jitter-free. Abundant Layer 2 features WI-PMS318GF-24V supports a complete lineup of layer 2 features, including: * 802.1Q tag VLAN * Port Isolation * Port Mirroring * STP/RSTP * Link Aggregation Control Protocol * 802.3x Flow Control Additionally, the switch provides advanced features for network maintenance, such as Loop Back Detection, Cable Diagnostics, and IGMP Snooping. IGMP snooping ensures the switch intelligently forwards the multicast stream only to the appropriate subscribers, while IGMP throttling and filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Hardware Features The switch has the following hardware features: * 16 10/100/1000Mbps RJ45 ports (Auto Negotiation/Auto MDI/MDIX) * 2 1000Mbps SFP slots * 1 Console port * Network Media: * 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) * 100BASE-TX/1000Base-T: UTP category 5, 5e, 6, or above cable (maximum 100m) * 1000BASE-X: MMF, SMF * 1000Base-L X: 62.5μm/50μm MM (2m~550m) or 10μm SMF (2m~5000m) * Fan Quantity: 3 * Fan Power Consumption: 350W (max. with PoE device connected) * Internal Power Supply: DC 24V 14.5A * AC 110 ~ 265V 50/60Hz * PoE Ports (RJ45): Standard: 24V Passive PoE compliant * PoE Ports: Port1 – Port16 * Power Supply: 350W * Exchange Capacity: 32G * Packet Forwarding Rate: 23.8Mpps * Mac Address Table: 8K * Packet Buffer Memory: 4Mb * Jumbo Frame: 10240 Bytes * Dimensions: Product Size: 440mm x 220mm x 44mm (L x W x H)
