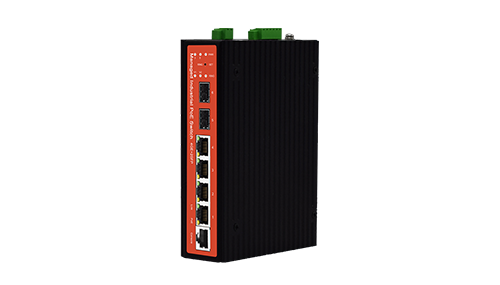

WITEK WI-PMS306GF-UPS-I is a 6-port industrial PoE network switch that offers combined control capabilities. It features four 10/100/1000 Mbps Gigabit Ethernet ports and two 10/100/1000 Mbps SFP uplink ports. This switch supports High-Power PoE (Hi-PoE) according to IEEE 802.3af/at/bt, with a maximum power output of up to 90W on ports 3 and 4. It also supports PoE according to IEEE 802.3af/at, with a maximum power output of 30W on ports 1 and 2. Additionally, it can automatically detect and support PoE devices up to 30W or Passive PoE with 24V/24W, with an auto-detect feature. The total PoE budget of this switch is 120W. The Ethernet signal transmission distance is up to 100 meters. The switch is equipped with a built-in battery backup function that includes a battery charge controller (12V/24V/15A). It also has a built-in solar panel power function, with separate input and control for charging (12V/24V/300W). Features include L2/L3/L4 QoS, IGMP snooping, support for 4K VLANs, SNMP v1/v2c/v3, and a web-based interface. The power supply range is 15-36V, and the compact dimensions of the switch are 235 x 167 x 80 mm. This network security solution is suitable for perimeter video/alarm systems and other applications.
