$67.13
$96

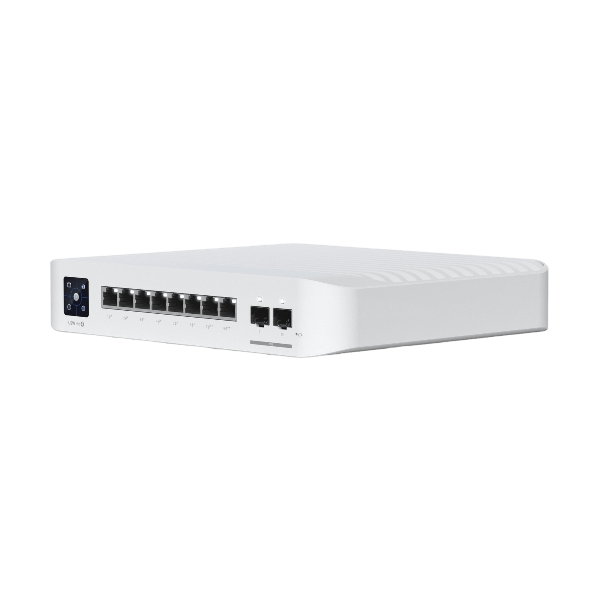

The UniFi USW-Pro-8-PoE is a versatile, compact Layer 3 switch designed for professional deployments, featuring 6x PoE and 2x PoE GbE RJ45 ports alongside 2x 10G SFP uplinks, delivering 56 Gbps switching capacity and 120W total PoE availability for powering devices like access points and cameras. It supports advanced networking with up to 1,000 VLANs, inter-VLAN routing, static routing, LACP aggregation, and security protocols including 802.1X, ACLs, and DHCP snooping, enhanced by Etherlighting for visual port status indication. Managed via the UniFi Network application (version 7.5.176 ), it includes a 1.3″ touchscreen LCM for local diagnostics and Ethernet AR for remote access, housed in a durable polycarbonate and metal enclosure suitable for desktop, wall, or rack mounting (up to 1200 mm depth). Operating from -5 to 45°C with internal 150W AC/DC power supply, it ensures reliability with certifications like CE, FCC, IC, and Anatel while maintaining NDAA compliance. Specification Details Model USW-Pro-8-PoE Switching Capacity 56 Gbps Total Non-Blocking Throughput 28 Gbps Forwarding Rate 42 Mpps Supported VLANs 1,000 MAC Address Table Size 16,000 L3 Table Size ARP Entries: 6,000; IPv4 Routes: 512 Packet Buffer Size 1.5 MB Ports 8x 1 GbE RJ45 (6 PoE , 2 PoE ); 2x 10G SFP (10G/1G) Layer Support Layer 3 Form Factor Compact desktop, wall, rack mount (1U) PoE Ports PoE : 6; PoE : 2 Max. PoE Wattage per Port PoE: 15.4W; PoE : 32W; PoE : 64W Total PoE Availability 120W Advanced Features Inter-VLAN Routing, Static Routing, LACP Port Aggregation, STP/RSTP, IGMP Snooping, 802.1X Control, ACLs (IPv4/MAC), DHCP Snooping/Guarding, Port Isolation, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection, Egress Rate Limit, Flow Control, Storm Control, Multicast & Broadcast Rate Limiting, DHCP Server, DHCP Relay Etherlighting™ RJ45 ports Management UniFi Network Application (v7.5.176 ), Ethernet AR, 1.3″ Touchscreen LCM Power Method AC/DC internal, 100-240V AC, 50/60 Hz Max Power Consumption 30W (Excluding PoE Output); 150W (Including PoE Output) Heat Dissipation 102.36 BTU/hr (Excluding PoE Output) Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7″) Weight 2.1 kg (4.6 lb) Enclosure Material Polycarbonate, metal Mounting Desktop, wall, rack (Supported Rack Depth: 400~1200 mm) Operating Temperature -5 to 45°C (23 to 113°F) Operating Humidity 10 to 90% noncondensing Certifications CE, FCC, IC, Anatel; NDAA Compliant
Ubiquiti Unifi Switch
