MikroTik MTAD-5G-30D3-PA mANT30 PA 5GHz 30dBi Antenna Mikrotik,2xRP-SMA Female

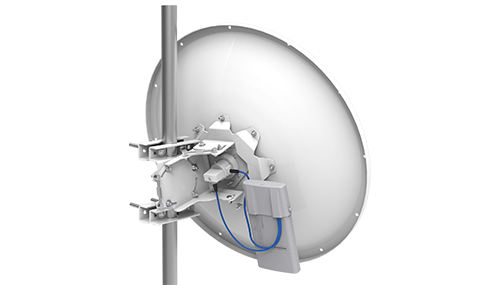

**mANT30 PA** mANT30 is a 5 GHz professional antenna with a 30 dBi gain. It is built to the highest industry standards and can be used with any pole-mounted wireless device. The antenna comes with two options: a standard type mount (MTAD-5G-30D3) and a precision alignment mount (MTAD-5G-30D3-PA). Both options include all necessary accessories and cables. **Product specifications** Product code: MTAD-5G-30D3-PA Antenna gain: 30 dBi Frequency range: 4.7–5.875 GHz Polarization: vertical and horizontal Beamwidth: 3 degrees VSWR: ≤ 1.4 typical, ≤ 1.8 maximum Port-to-port isolation: >40 dB minimum Front-to-back ratio: >30 dB Cross polarization: >40 dB Power rating: 100 W Impedance: 50 ohms Elevation adjustment range: /- 15 degrees Diameter x Depth: 70 x 45 cm (27.5 x 17.8 inches) Weight: 5.7 kg (12.6 lb) Reflector: aluminum Outdoor rating: ETSI EN 300 019-2-4 standards EN 302 326 DN1, DN2, DN3, DN5 Wind survivability: 201 kph (125 mph) Wind load (125 mph): 181.4 kg (400 lb) Operating temperature: -50°C to 80°C (-49°F to 158°F) Pole mount diameter range: 3 to 10 cm (1.2 to 3.9 inches) Connector: 2x RP-SMA Female (outside thread) Packaged size: 73 x 73 x 20 cm (29 x 29 x 8 inches) Packaged weight: 8.4 kg (18.5 lb)
