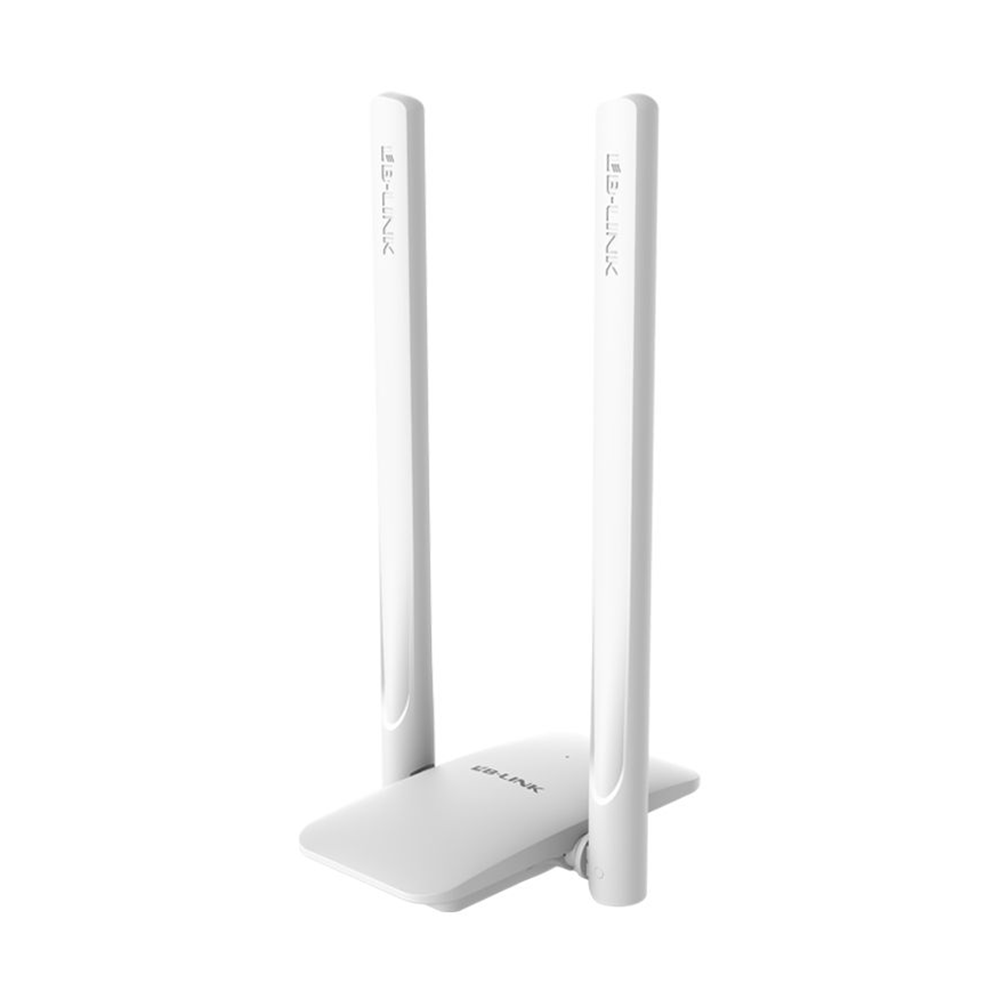

LB-LINK BL-WDN1300A,Wireless network adapter 1300Mbps, 2.4/5Ghz, 2 x 6dBi, White – 19046

**Description Standards** The device supports the following standards: * 2.4GHz: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b * 5.0GHz: IEEE 802.11ac, IEEE 802.11n, IEEE 802.11a **Interface** The device has a USB 3.0 interface. **Frequency Range** The device operates in the following frequency range: * 2.4-2.4835GHz for 2.5G channels * 5.15~5.845 GHz for 5G channels The device supports the following modulations: * OFDM * CCK * 16-QAM * 64-QAM * 256-QAM **Receiver Sensitivity (without Standard Antenna)** The device has the following receiver sensitivity without using a standard antenna: * 2.4G 1M: -95dBm@8% PER * 6M: -90dBm@10% PER * 11M: -86dBm@8% PER * 15M: -84dBm@10% PER * 54M: -73dBm@10% PER * 150M: -68dBm@10% PER For the 5G frequency range, the device has the following receiver sensitivity: * 6M: -90dBm@10% PER * 15M: -88dBm@8% PER * 32.5M: -82dBm@10% PER * 54M: -70dBm@10% PER * 300M: -68dBm@10% PER * 867M: -58dBm@10% PER **Supported Operating Systems** The device is compatible with the following operating systems: * Windows XP * Windows Vista * Windows 7 * Windows 10 **Environment** The device operates in the following temperature range: * Operating temperature: 0°C to 40°C (32°F to 104°F) * Storage temperature: -40°C to 70°C (-40°F to 158°F) The device also operates in the following humidity range: * Operating humidity: 10% to 90% RH, non-condensing * Storage humidity: 5% to 90% RH, non-condensing The device requires a DC 5V ±0.2V operating voltage. **Max Transfer Speed** The device supports a maximum transfer speed of 1300 Mbps. **Card Type** The device is a network Wi-Fi interface with a USB 3.0 interface.
