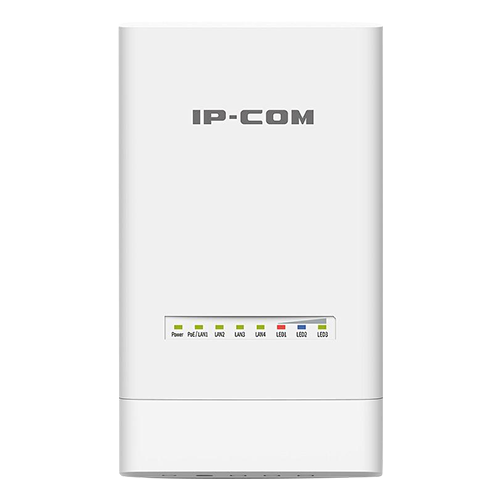

5GHz 12dBi ipMAX ac Outdoor CPE 5GHz 11AC 867Mbps 12dbi directional antenna Four fast ethernet Port IP65 waterproof enclosure 6000V Lightning Protection 12V 1A DC/12V 1A Passive PoE supported Product Information Model CPE6S Dimensions 193*109*61mm Deployment Pole/Wall Mount Application Scenarios PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance Hardware Features Frequency Range 5GHz Compliant Standards IEEE 802.11a/n/ac Private TDMA Protocol ipMAX Maximum Wireless Rate 867Mbps Interfaces 4*10/100Mbps Ethernet Port Antennas Gain 12dBi Antenna Beamwidth Horizontal: 30° Vertical: 30° Elevation: 30° Reset Button 1 Power Consumption 4.7W Waterproof Level IP65 LED indicator Power,PoE/LAN1,LAN2,LAN3,LAN4LED1,LED2,LED3 Power Method 12V1A Passive PoE 12V 1A DC Lightning Protection 6000V PoE 802.3af/at / Passive PoE Passive power over ethernet via PoE/LAN ( 4,5pins; -7,8pins ) up to 60 meters Voltage range: 11-13V DC Receive sensitivity 11a 6Mbps -92dBm±1.5dBm 11n MCS7 HT20 -72dBm±1.5dBm 11ac MCS9 HT80 -64dBm±1.5dBm Software Features Operating mode AP/Station/WISP/P2MP/WDS Repeater/Router Enable/Disable Wireless Radio Support SSID Hidden Support Wireless Client isolation Support SSID Isolation Support Channel Bandwidth 20/40/80MHz Client Limitation For SSID Support Wireless Access Control Support Weak Signal Client Limitation Support Transmission Power Adjustable power by 1dBm WMM Capable Support APSD Capable Support Wireless Security 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 Transparent Bridge Support VLAN Tagging for SSID Support DHCP Server Support VPN Pass-Through PPTP,L2TP Remote Web access Support Schedule Reboot Support Page Timeout Support Ping Watchdog Support Dyndns noip, dyndns.org Network Diagnoses Ping, Traceroute, Signal Scan Time&Date Setting Support Firmware upgrade Support Backup/Restore Configuration Support Username Managerment Support System Log Support Managed By Controller PC Software — CPE Controller Others Package Contents 1*5GHz 12dBi ipMAX ac Outdoor CPE 1*Power adapter 1*PoE Injector 1*Quick Installation Guide Operating Temperature -30c ~ 60c Storage Temperature -40c ~ 70c Operating Humidity 10%~90% non-condensing Storage Humidity 10%~90% non-condensing
