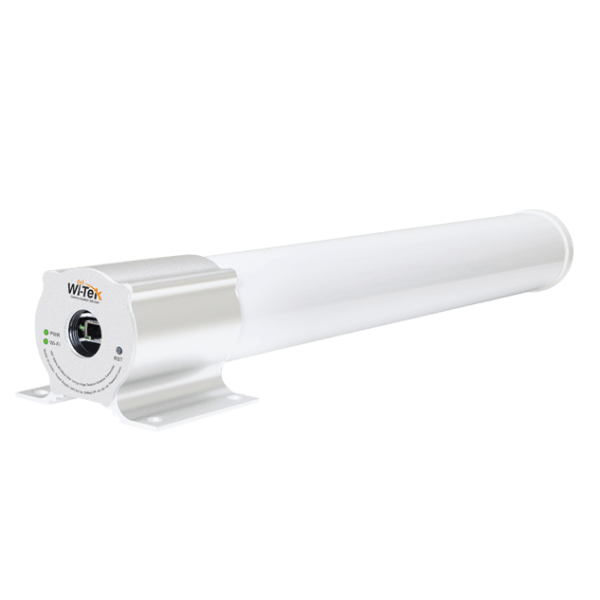

The Wi-Tek WI-CPE821 is a high-performance 5GHz 867Mbps outdoor wireless CPE engineered for reliable long-distance point-to-point and point-to-multipoint links up to 15 km . Powered by Qualcomm Atheros chipset and equipped with a built-in 16dBi dual-polarized directional antenna, it delivers stable 867 Mbps (11ac) throughput even in challenging environments. Advanced TDMA technology minimizes collision and maximizes efficiency in multi-node deployments, while selectable 20/40/80 MHz channel width optimizes speed vs. range. Setup is incredibly simple: LED signal strength indicators and audible alignment tone help achieve perfect antenna alignment in minutes. The unique Auto-Provisioning & Auto-Bridge mode allows two units to pair automatically out of the box – no laptop required. Passive 24V PoE (injector included) supports up to 80 m cable runs, simplifying pole or tower installations. Rugged IP65-rated housing withstands extreme weather (-30°C to 70°C), and built-in 6 kV surge/15 kV ESD protection ensures 24/7 reliability. Ideal for rural broadband extension, farm surveillance, warehouse connectivity, coastal resorts, or campus expansion. Pair two WI-CPE821 units for a plug-and-play 15 km wireless bridge at a fraction of the cost of fiber – the smartest way to conquer distance without digging trenches. Category Specification Wireless Standard: IEEE 802.11a/n/ac Frequency: 5.15–5.825 GHz Max. Speed: 867 Mbps (80 MHz channel) Chipset: Qualcomm Atheros Antenna: 16 dBi Dual-Polarized Directional Beamwidth: Horizontal 35°, Vertical 35° Transmission Power: Up to 27 dBm TDMA: Yes (reduces collision in PtMP) Channel Width: 20/40/80 MHz Range Max. Distance: 15 km (clear line of sight) Modes Access Point, Station, WDS AP, WDS Station, Repeater Auto-Provisioning & Auto-Bridge (pairing mode) Management Web GUI, Wi-Tek Cloud (optional), SNMP LED Signal Indicator Audible Alignment Tone Wired 1 × 10/100 Mbps LAN (Passive 24V PoE) 1 × 10/100 Mbps LAN (data only) Power Passive 24V PoE (injector included) Consumption: Max. 7 W Protection IP65 Weatherproof Surge Protection: 6 kV ESD Protection: 15 kV Physical Dimensions: 270 × 90 × 75 mm Weight: 0.5 kg Mounting: Adjustable pole mount included Environmental Operating Temperature: -30 °C to 70 °C Operating Humidity: 10 %–90 % (non-condensing) Certifications CE, FCC, RoHS Warranty 3 Years
