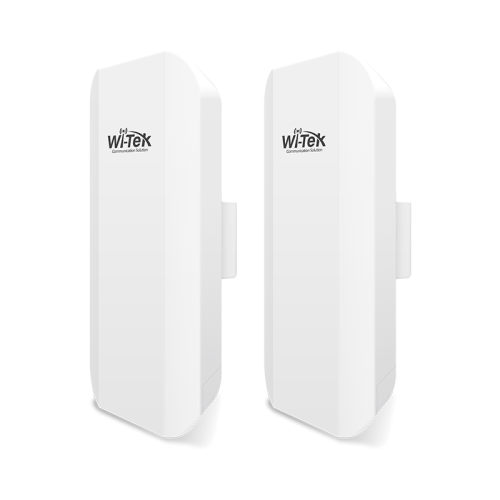

Wi-TEK WI-CPE800-KIT V3 Wireless IP video signal transmission kit
$49.99
$96.48
Wi-Tek CPE800-KIT-V3 Gigabit Wireless PTP Link Kit Wi-Tek’s P2P kits are an out-the-box solution for creating wireless bridges with ease. The CPE800 allows for it to be powered by standard PoE and is also cloud managed. – 1x 10/100/1000 Base-T LAN Ethernet port – 802.3af/at PoE Input – Wireless speed can be up to 867Mbps with 802.11ac – Built-in 12dBi 2×2 dual-polarized directional MIMO antenna – Adjustable transmission power from 0 to 29dBm – Plug and Play for PTP mode – Long range wireless transmission up to 5km – IP65 protection level and 8kV ESD protection Hardware Version V2 HARDWARE FEATURES Interface 1*10/100/1000 Base-T LAN Ethernet port Signal Rate 867 Mbps at 5GHz Operating Band 802.11 a/n/ac: 5.15~5.85GHz Antenna Type Build-in 12dBi Directional Antenna Power Supply 12V DC / 48V (802.3af)PoE Power Consumption 6.5W Transmit Power ≤800mW(29 dBm) Recommended Distance 5km Antenna Angle 45° External Buttons reset button:long press for 5 seconds to restore the factory default configuration Protection 8kV ESD Protection Waterproof IP65 Dimensions 177*80*65mm Package Dimension 278*246*106mm Package Contents 2 x CPE 2 x Accessory Set 1 x Quick Installation Guide 2 x 48V Adapter 2 x RJ45 Cables Environment Working Temp: -30~60℃ Storage Temp: -40~85℃ Working humidity: 5%-95%(non-condensing) Storage Humidity 5– 90% RH non-condensing SOFTWARE FEATURES Operating Modes Base Station/CPE/Repeater/WISP Mode Wireless Security WPA-TKIP/WPA2-AES,WPA/WPA2-Enterprise Wireless Parameter Selectable Channel Width: 20/40/80MHz Automatic Channel Selection Tx Power Control System Tools Speed Test,Ping,Traceroute Management Support local management with web Support remote management with Wi-Tek Cloud Platform
