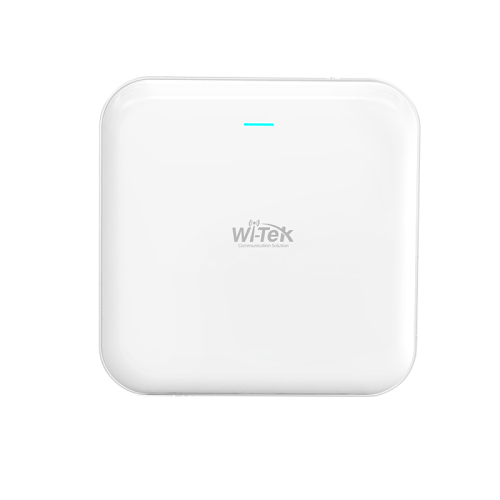

Wi-TEK WI-AP217-Lite V2 wireless Access point

WI-AP217-Lite(V2) ● 2 x Gigabit Ethernet ports ● 300Mbps at 2.4GHz 867Mbps at 5GHz ● Support 802.3af PoE Input ● Support fast roaming technology to keep uninterrupted connections ● With MU-MIMO and OFDM, ensures multile simultaneous terminals online ● Support load balance, ensures smooth network experience ● Support AP controller and cloud management   Hardware Specifications Interfaces: 2 × 10/100/1000Mbps Ethernet Ports (WAN port supports 802.3af PoE Input) Memory: 128MB RAM, 16MB Flash Power Supply: 802.3af PoE Input or DC 12V/1A Power Consumption: Max 10W Wireless Features Wireless Standards: IEEE 802.11a/b/g/n/ac Maximum Wireless Rate: 2.4GHz: up to 300 Mbps 5GHz: up to 867 Mbps MIMO: 2.4GHz: 2×2 5GHz: 2×2 Antenna Gain: 2.4GHz: 4.6dBi 5GHz: 4dBi Frequency Bands: 2.4GHz, 5GHz Channel Width: 2.4GHz: 20/40MHz 5GHz: 20/40/80MHz Maximum Transmit Power: 22dBm Power & Physical Characteristics Product Dimensions: 188 × 188 × 35 mm Package Dimensions: 243 × 235 × 76 mm Weight: 0.55 kg (Net), 0.8 kg (Package) Installation: Ceiling-mounted, Wall-mounted Environmental Conditions Operating Temperature: -20°C to 55°C Storage Temperature: -40°C to 70°C Operating Humidity: 5-95% RH (non-condensing) Storage Humidity: 5-95% RH (non-condensing) Software Features Operating Modes: Fit AP / Fat AP (Default: Fit AP mode) Network Configuration: LAN: Static IP, Dynamic IP WAN: Static IP, Dynamic IP, PPPoE Client Maximum Clients: 100 (Recommended: 48) Security Features: WPA-TKIP, WPA2-AES, WPA1/WPA2-Mixed, WPA-Enterprise, WPA2-Enterprise Supports IEEE 802.1Q VLAN Supports SSID-to-VLAN mapping Management Options: Local Web-Based Management Remote Cloud-Based Management AC Management Support Additional Features: Multiple SSID Support (Up to 8 per radio) Wi-Fi Schedule Auto Channel Selection Adjustable Transmission Power Weak Signal Rejection Scheduled Reboot Ping Watchdog Certifications CE, FCC, RoHS, UKCA, RCM Package Contents WI-AP217-Lite (V2) Access Point × 1 Plastic Anchors × 4 Self-Tapping Screws × 4 Ethernet Cable × 1 Quick Installation Guide × 1
