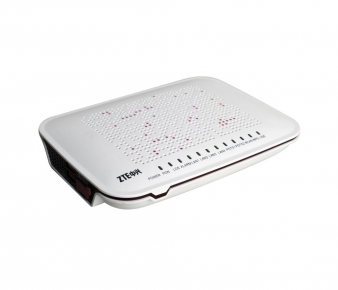

ZTE F660 GPON CPE, WiFi, 1x PON, 2x POTS, 4x GbE, 1x USB ports Supplier Number 180000145377 Description The F660 is a high-end home gateway in ZTE FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The F660 provides two POTS ports, four GE/FE auto-adapting Ethernet ports, one USB port, and one Wi-Fi port. The F660 features high- performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. ZXHN F660 is a GPON Optical Network Termination unit for HGU (Home Gateway Unit) with four 10/100/1000M Ethernet ports, two POTS ports, one USB ports and WIFI used in FTTH application, with 2.488Gbps downstream and 1.244Gbps upstream GPON interface Features • ITU-T G.984.x GPON standards •1.244Gbps burst mode upstream, 2.488Gbps downstream • Upstream 1310nm, 1490nm • Output optical 0.5dBm,Max 5dBm • Receiver sensitivity: 28dBm • Frequency: 2.4 GHz • IEEE 802.11b/g/n •128 bits WEP data encryption • WPA/WPA2 (Wi-Fi Protected Access) Security • WPS (Wireless Protected Setup) • WMM(Wi-Fi Multi Media) • Max 4 Broadcast/hide SSIDs • Max 128 users one SSID • SIP/ H.248/ MGCP • DTMF Dialing / DTMF Digits • 5-REN, balanced ring, 55V RMS • Codec: G.711 (μ-law and A-law), G.726, G.729, G.723.1 • 32 ms echo cancellation • VAD/CNG • IN-BAND method • DTMF encoding by RFC 2833 • T.38/T.30 FAX • Caller ID/ Call Waiting/ Call Forwarding/ Call Transfer/ Call Toggle/ Three Way Calling/ Distinctive Ringing • IPv6 / IPv4 Dual Stack • NAT/ SNTP • ALG • Static routing, and dynamic routing in RIPV1/V2 • PPPoE Client/Pass Through • DNS Client/Server • IGMP v1/ v2/ v3 • IGMP proxy/snooping and more…
