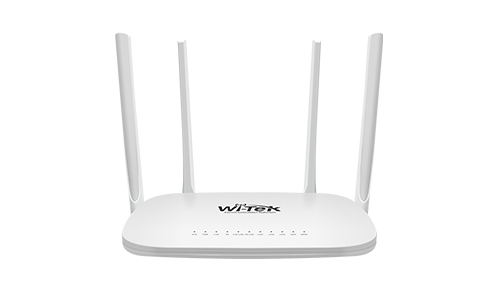

Wi-TEK Wireless MESH Router WI-R3 Features: – 4 x 10/100Mbps Ethernet ports – Supports both AP mode (default) and router mode – Supports 3 PoE outputs for IP cameras when DC input is 52V – Supports 3 PoE outputs for IP cameras when PoE input is 48V – Fast roaming support – Cloud and web management support This router supports 802.11ac wave 2/wave 1/b/g/n standards (Wi-Fi 5). It has built-in 4 antennas with 2×2 MIMO and 5dBi gain. The router provides wireless Wi-Fi connections in the 2.4GHz and 5.8GHz bands, with speeds up to 300Mbps (2.4GHz) and 867Mbps (5GHz). It has 1 x 10/100 Mbps WAN port and 3 x 10/100 Mbps LAN ports. The router offers various features such as MESH operation mode, guest Wi-Fi, SSID hiding, Wi-Fi roaming switching, and channel adjustment. The Wi-Tek Cloud management system allows for easy configuration and status monitoring of the router. It supports internal installation and has a web interface for setting up and monitoring the router’s status. The router comes with a PVC housing for complete installation. It requires a power supply with an input voltage range of 12-54Vdc and a current of 1.25A.
