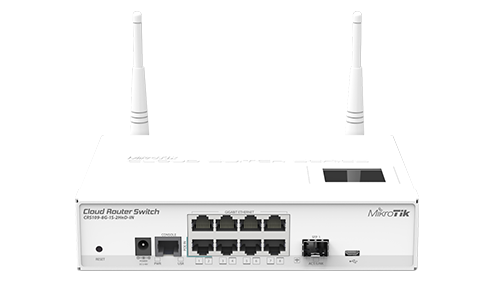

The CRS109-8G-1S-2HnD-IN is a new member of our CRS series, designed to be small in size and cost-effective. It features eight Gigabit Ethernet ports for wired connections and high-power 2.4 GHz wireless capabilities, providing reliable connectivity for your network. This product supports a wide range of input voltages, from 10 to 57 volts, making it compatible with various power sources. It is also PoE (Power over Ethernet) compliant, allowing for convenient power delivery through the Ethernet cable. With its familiar RouterOS operating system, the CRS109-8G-1S-2HnD-IN combines the functionalities of a fully functional router and a Layer 3 switch. The Switch menu offers specific configuration options for the switch, while ports can also be removed from the switch configuration and used for routing purposes if desired. Key Specifications: * Product code: CRS109-8G-1S-2HnD-IN * SFP support: Yes * CPU nominal frequency: 600 MHz * CPU core count: 1 * RAM size: 128 MB * Ethernet ports: 8, 10/100/1000 Mbps * Wireless chip model: AR9344 * Wireless standards: 802.11b/g/n * Number of USB ports: 1 * Power jack: Yes * 802.3af support: Yes * Supported input voltage: 8 V – 57 V * PoE in: Yes * Voltage monitor: Yes * PCB temperature monitor: Yes * Dimensions: 200x145x45 mm * Operating System: RouterOS * Tested ambient temperature: -35°C to 65°C * License level: 5 * Antenna gain DBI: 4 * CPU: AR9344 * Max Power consumption: 13W * SFP ports: 1 * USB slot type: microUSB type AB * Number of chains: 2 * Serial port: RJ45 * Storage type: NAND * Storage size: 128 MB * Wireless specifications: 2.4 GHz * Transmit power (dBm): 13 * Receive Sensitivity: -73 dBm * Transmit power (mW): 1000 mW * 1 MBit/s: 794 mW * 11 MBit/s: 631 mW * 6 MBit/s: 316 mW * 54 MBit/s: 200 mW * MCS0: 1000 mW * MCS7: 200 mW Please note that the wireless parameters may be limited in software based on your local regulatory restrictions.
