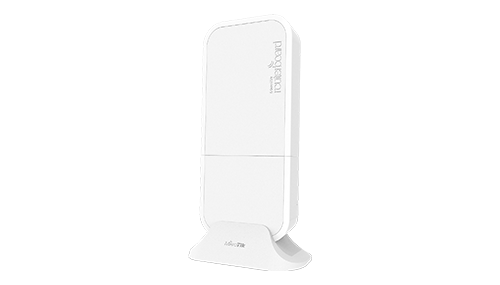

MicroTik RBWAPR-2ND-R11E-LTE wAP LTE kit Small weatherproof wireless AP with International LTE m
$58.99
$108.54
The wAP LTE is a small wireless access point with weatherproofing and a built-in cellular modem that supports 2G, 3G, and 4G (LTE) networks. It allows you to connect to the LTE network from your phone or other wireless devices using its built-in 802.11b/g/n wireless connection. The wAP LTE also features one 10/100 Ethernet LAN port for connecting wired devices. Additionally, the LTE cards are connected to two internal antennas with u.FL connectors. If desired, you can unplug the connectors and add your own external LTE antenna for wider coverage. The device offers various powering options, including PoE-in by Ethernet port, DC jack, and Automotive connector, making it versatile for use in mobile devices such as cars, buses, or trains. The RBwAPR-2nD&R11e-LTE includes an LTE modem that supports international LTE bands 1, 2, 3, 7, 8, 20, 38, and 40. Specifications: – Product code: RBwAPR-2nD&R11e-LTE – Architecture: MIPSBE CPU – CPU core count: 1 – CPU nominal frequency: 650 MHz – Dimensions: 185 x 85 x 30 mm – License level: 4 – Operating System: RouterOS – Size of RAM: 64 MB – Storage size: 16 MB – Storage type: FLASH – Tested ambient temperature: -40°C to 60°C Powering Details: – Max Power consumption: 8W – PoE in: Passive PoE – PoE in input Voltage: 9-30 V – Number of DC inputs: 3 (Automotive, DC jack, PoE-IN) – DC jack input Voltage: 9-30 V – Automotive input Voltage: 9-30 V Mobile Details: – 2G Category: Class12 – 3G Category: R7 (21 Mbps Downlinks, 5.76 Mbps Uplink) – LTE Category: 4 (150 Mbps Downlink, 50 Mbps Uplink) – LTE FDD bands: 1 (2100 MHz) / 2 (1900 MHz) / 3 (1800 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) – LTE TDD bands: 38 (2600 MHz) / 40 (2300 MHz) Wireless Details: – Wireless 2.4 GHz number of chains: 2 – Wireless 2.4 GHz standards: 802.11b/g/n – Antenna gain dBi for 2.4 GHz: 2 – Wireless 2.4 GHz chip model: QCA9531 Ethernet Details: – 10/100 Ethernet ports: 1 Peripherals Details: – Number of SIM slots: 1 – Modem (Mini SIM): MiniPCI-e slots: 1 Other Details: – PCB temperature monitor: Yes – Voltage Monitor: Yes – Wireless specifications 2.4 GHz: – Transmit (dBm): – Receive Sensitivity 1MBit/s: 22 -96 – 11MBit/s: 22 -89 – 6MBit/s: 20 -93 – 54MBit/s: 18 -74 – MCS0: 20 -93 – MCS7: 16 -71
