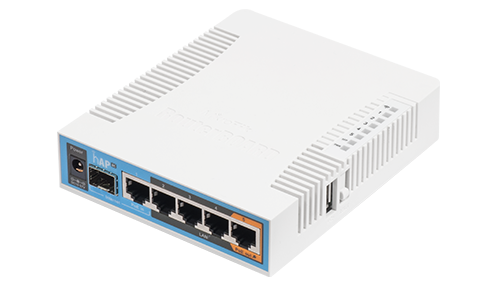

The hAP ac is a versatile wireless device that can be used in homes or offices. It is a dual-band device with Gigabit ports, which allows it to take full advantage of the speed offered by 802.11ac technology. However, it also remains compatible with older devices that use 2GHz 802.11 b/g/n or 5GHz a/n modes. The hAP ac features omnidirectional antennas, which make it easy to install in any location. Its high-power transmitter ensures good coverage for mobile devices in your home, office, or public location. Other useful features include a USB port that can be used for additional storage or a 3G/4G modem. The device also has a PoE output on the last Ethernet port, which allows it to power other RouterBOARD devices without the need for an extra power adapter. Additionally, there is an SFP cage for connecting active or passive optical network modules. Specifications: – Product code: RB962UiGS-5HacT2HnT – Architecture: MIPSBE – CPU: QCA9558 – CPU core count: 1 – CPU nominal frequency: 720 MHz – Dimensions: 114 x 137 x 29mm – License level: 4 – Operating System: RouterOS – Size of RAM: 128 MB – Storage size: 16 MB – Storage type: FLASH – Tested ambient temperature: -20°C to 60°C Powering Details: – Max Power consumption: 17W – PoE in: Passive PoE – PoE out: Passive PoE – PoE in input Voltage: 11-57 V – Number of DC inputs: 2 (DC jack, PoE-IN) – DC jack input Voltage: 11-57 V Wireless Details: – Wireless 2.4 GHz number of chains: 3 – Wireless 2.4 GHz standards: 802.11b/g/n – Antenna gain dBi for 2.4GHz: 2.5 – Wireless 2.4 GHz chip model: QCA9558 – Wireless 5 GHz number of chains: 3 – Wireless 5 GHz standards: 802.11a/n/ac – Antenna gain dBi for 5 GHz: 2 – Wireless 5 GHz chip model: QCA9880 Ethernet Details: – 10/100/1000 Ethernet ports: 5 Fiber Details: – SFP ports: 1 Peripherals Details: – Number of USB ports: 1 – USB Power Reset: Yes – USB slot type: USB type A – Max USB current (A): 1 Other Details: – PCB temperature monitor: Yes – Voltage Monitor: Yes Wireless specifications: 2.4 GHz Transmit (dBm): – Receive Sensitivity 1 MBit/s: 29 -100 – Receive Sensitivity 11 MBit/s: 29 -94 – Receive Sensitivity 6 MBit/s: 29 -96 – Receive Sensitivity 54 MBit/s: 26 -81 – MCS0: 29 -96 – MCS7: 25 -77 5 GHz Transmit (dBm): – Receive Sensitivity 6 MBit/s: 28 -96 – Receive Sensitivity 54 MBit/s: 25 -81 – MCS0: 28 -96 – MCS7: 24 -77 – MCS9: 21 -72.
